LB-TB60

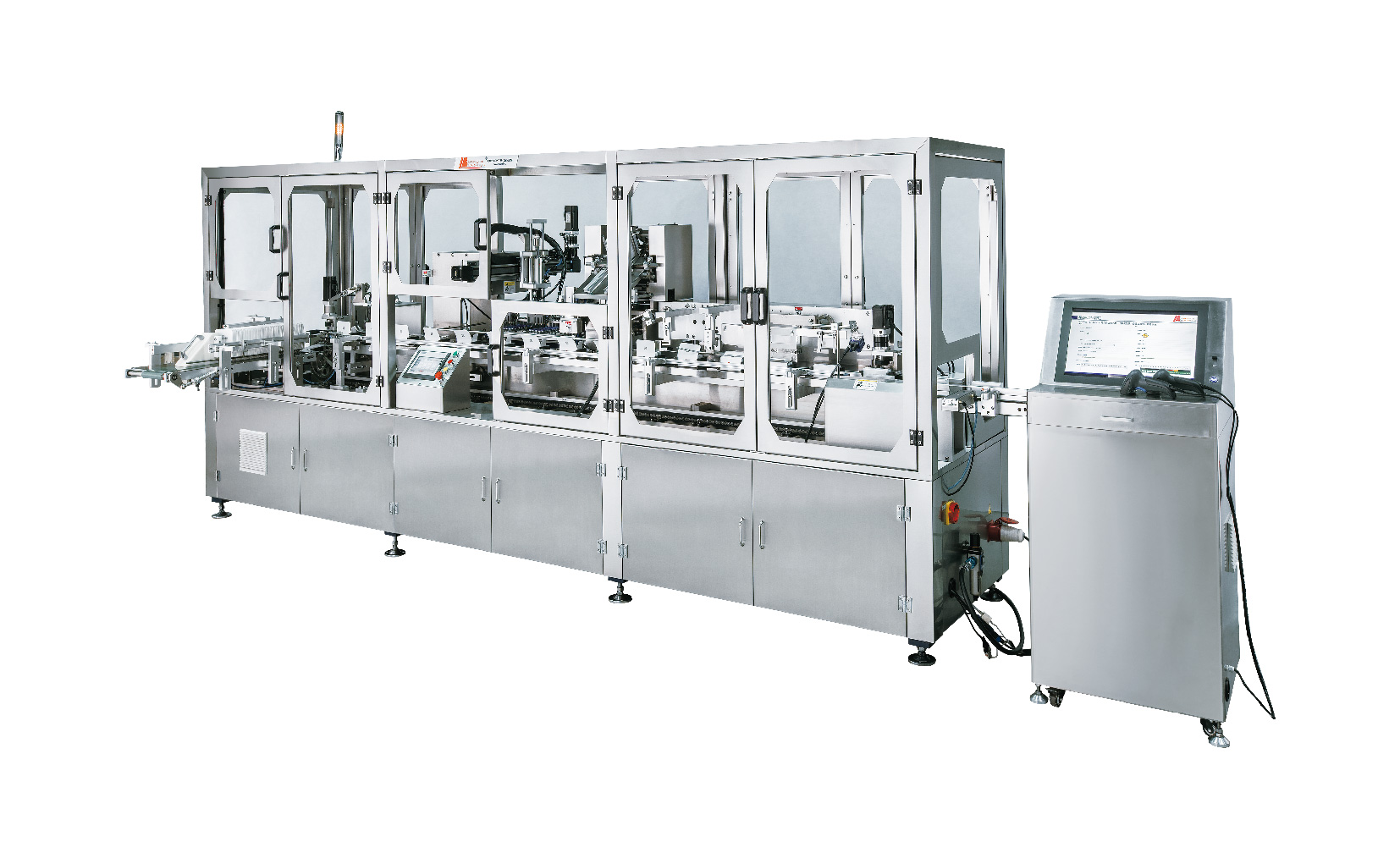

Multifunctional Automatic Vertical Mounting Cartoning Machine

Applications

station machine

Cartoning Machine

Cillin bottle

Performance Features

  • The machine is in concise structure, convenient adjustment, simple cleaning and easy maintenance.

  • Automatic detection system can remove defective items.

  • Adopting superior quality, high speed motor and steedy speed, it can reach 60boxes/min.

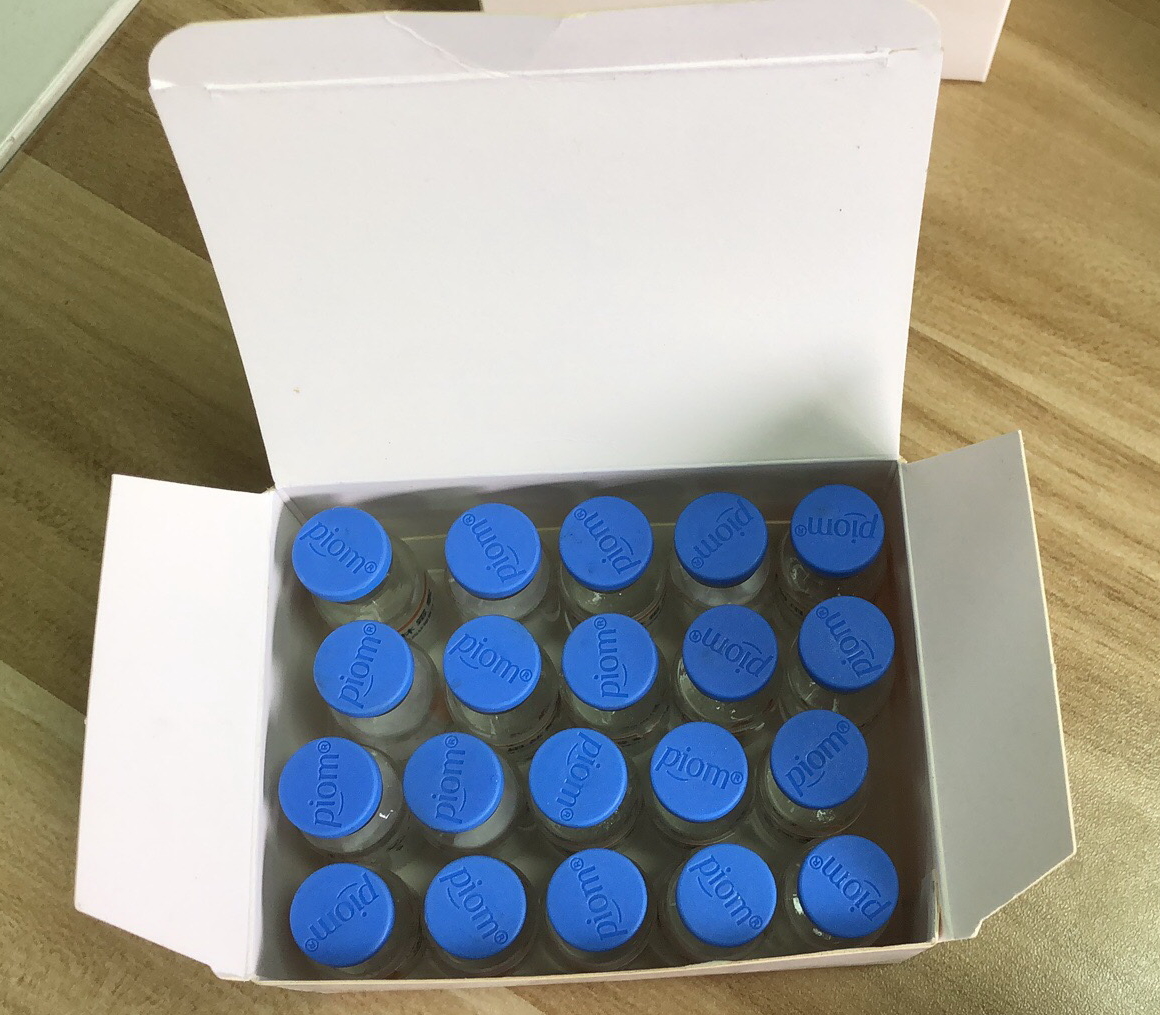

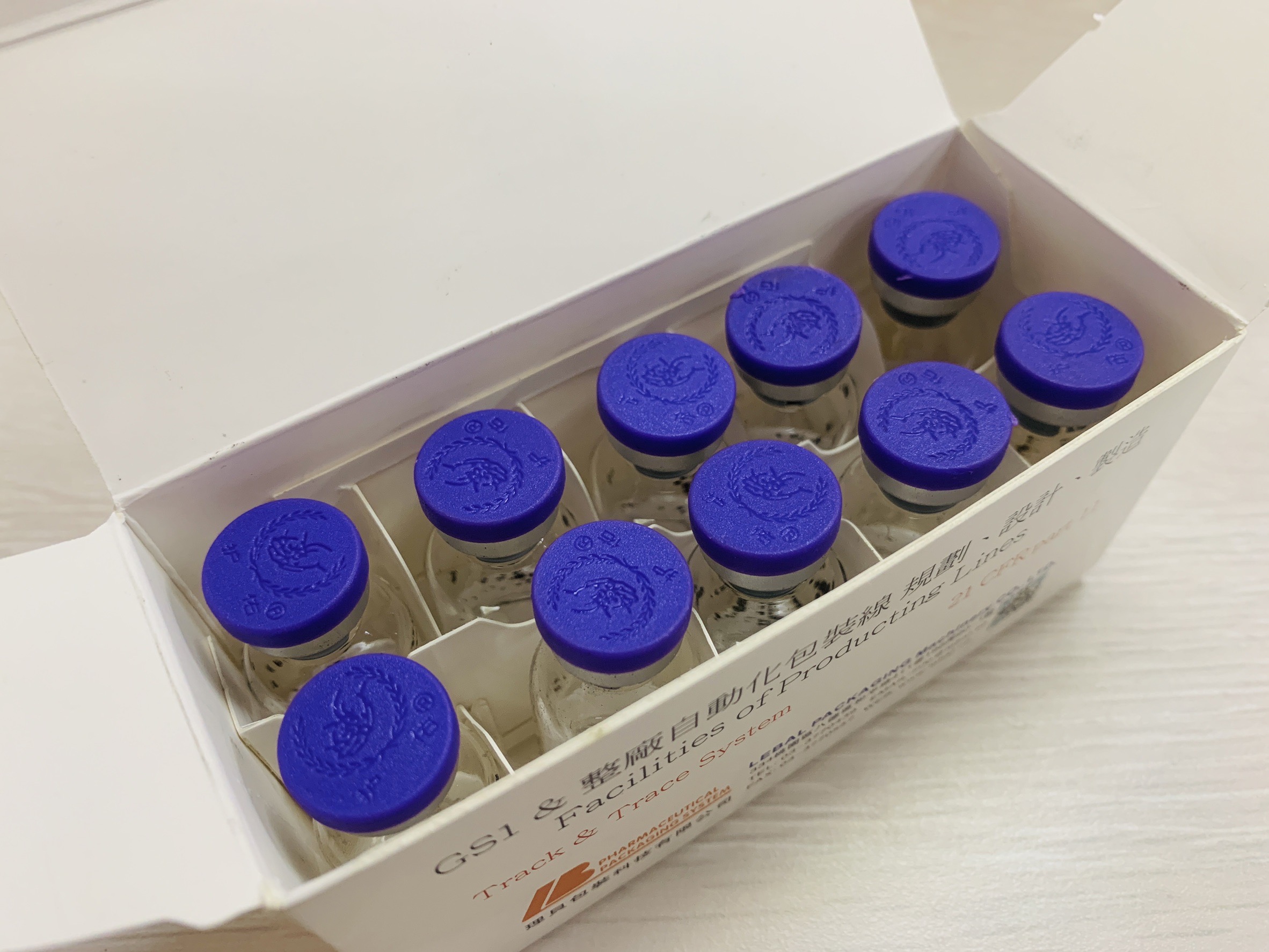

  • Used to packing vials, ex:cillin bottles.

  • Guaranteed high quality and high-efficiency production.

  • The manual can be folded and can be automatically boxed and sealed with the small round bottle.

Technical specification

Packing demensions (LxWxH)
(50-180)*(30-120)*(50-160)mm (LxWxH)
Packing frequency
20-60 boxes/min
Outline dimensions
4100x940x1960mm (not including conveyer)
Weight
1500kg
Power supply
380V, 50Hz
Carton quality reqiurement
250-350g/m2

*As technical data for these machines may be advantaged in future.
